UHMWPE NAVIGATION BUOY
UHMWPE NAVIGATION BUOY

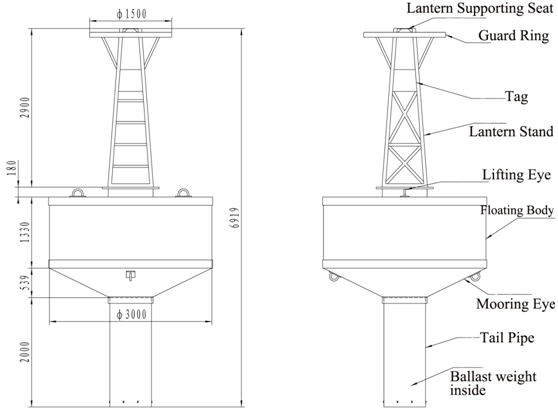

Product showing:
Description:
Ultra high molecular weight polyethylene navigation buoys have the features of corrosion resistance, non brush painting, environmental protection, non bonding sea creatures, high impact resistance and so on. It has a long service life reaching 30 years more. UHMWPE navigation buoys belong to low carbon emission, energy saving, green and environmental protection products, providing better security for ship navigation at sea.
Specification:
Buoy Size | Buoy | Buoying | Freeboard | Focal Plane | Net Weight | Height | Reseve |
(mm) | (m) | (mm) | (mm) | (kg) | (mm) | (kgs) | |
ALA800 | 800 | 1.5-10 | 450 | 1580 | 195 | 2900 | 230 |
ALA1200 | 1200 | 2-20 | 510 | 2040 | 550 | 3380 | 570 |
ALA1500 | 1500 | 3-35 | 610 | 2740 | 760 | 4280 | 974 |
ALA1800 | 1800 | 5-70 | 700 | 3031 | 1748 | 5034 | 1500 |
ALA2100 | 2100 | 10-80 | 800 | 3518 | 1900 | 5757 | 2450 |
ALA2400 | 2400 | 10-90 | 960 | 4527 | 2881 | 6930 | 3950 |
ALA3050 | 3050 | 20-120 | 1114 | 5164 | 3490 | 7610 | 7646 |
ALA3500 | 3500 | 20-150 | 1240 | 6090 | 3863 | 8520 | 11380 |
UHMWPE Properties: |
High Environment Protection / High Abrasive Resistance / High Impact Resistance / Excellent Flexibility / High Corrosion Resistance / High Weather Resistance / Self Lubrication / Light Weight |
Features:
Material: self-colored material UHMWPE, no pollution to the environment, won’t discompose for decades in the seawater.
Maintenance: no need painting in a decade; self-lubricated floating body and tail pipe without any sea creatures adhered to, saving much manpower and material resources to clean.
High Impact Resistance: high elasticity and hardness, quick resiling after being hit by an external force; light weight and small inertia makes it move fast after being bit.
Long Service Life: high corrosion resistance, UV irradiation resistance, chemical stablility, anti-rust etc.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
