Steel Navigation Buoy
Steel Navigation Buoy Steel Navigation Buoy Steel Navigation Buoy Steel Navigation Buoy
< Go to  BUOY

Steel Navigation Buoy

Material:Steel Color:Red, Yellow, Green Or Customized Application:Navigation Buoy Function: Aids To Navigation Standard: IALA Type:Marine Buoy Certificate:ISO 9001


+8613355655259
+86551-68997282
Products Introduction

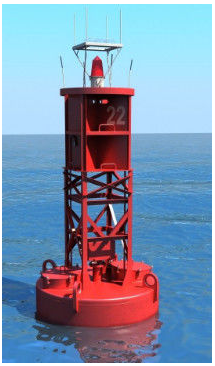

Steel Navigation Buoy


Description:


With diameters ranging from 0.8 metres to 8 metres, steel navigation buoys offer highly effective solutions across the whole spestrum of navigation requirements, from sheltered water to open seas. In answer to worldwide demand, steel navigation buoys have been supplied in many sizes and can be divided into deep water buoys or shallow water buoys for customers’choice.


Specification:

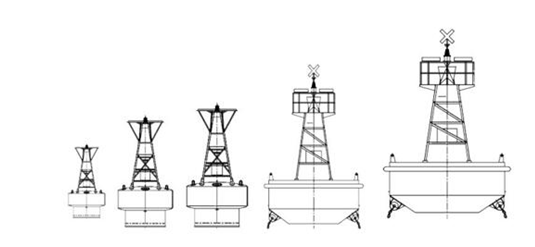

Steel Navigation Buoy used as Navigation Marks in Ocean, Inland River and Offshore Oil Platform, diameter is from 0.5M to 8M.



Type

Dia.   (m)

Lamp   Bracket (m)

Focal   Plane Height (m)

Lamp

Draught   (m)

Buoy   Depth (m)

Weight   (t)

0.8-D1

0.8

1.0-1.5

1.5-2.0

LED

0.5-1.5

3.5-15

0.6

1.0-D1

1

1.5-2.0

2.0-2.5

LED

1.5-1.5

3.5-15

0.8

1.2-D1

1.2

2.0-3.0

2.5-3.5

LED

1.5-2.8

3.5-15

0.9

1.5-D1

1.5

2.0-3.0

2.5-3.5

LED

1.5-2.8

3.5-15

1.2

1.8-D1

1.8

3.0-4.0

3.6-4.8

LED

1.5-2.8

6-25

1.8

2.4-D1

2.4

3.0-4.0

3.5-5.5

LED

2.0-3.0

13-40

4.2

3.0-D1

3

3.5-5.0

4.5-6.0

LED

2.0-3.0

13-40

4.8

3.6-D1

3.6

3.5-5.0

4.5-6.0

LED

2.0-3.0

13-40

5.8

6.0-D1

6

4.5-6.0

4.5-6.0

LED

2.0-3.0

13-40

-

8.0-D1

8

6.0-12

6.0-12

LED

2.0-3.0

20-80

-


Application:

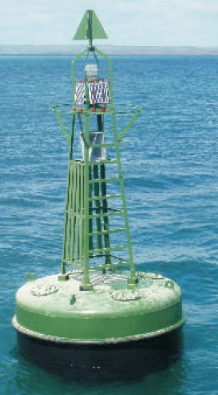

Such steel buoys can be used in inland river, ocean, sea port area, sea and river waterway and offshore oil platform. It belongs to aids to navigation system, used as signal to warn and remind nearby vessel.



Service:



We provide drawing design and manufacturing.

Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.

Quick delivery.

Quality products.

Served in marine industry more than twenty years.

Enjoyed excellent reputation from global customers.
